冷再生機的運行要如何把控？
來源：http://www.beianedu.cn/ 日期：2021-04-23

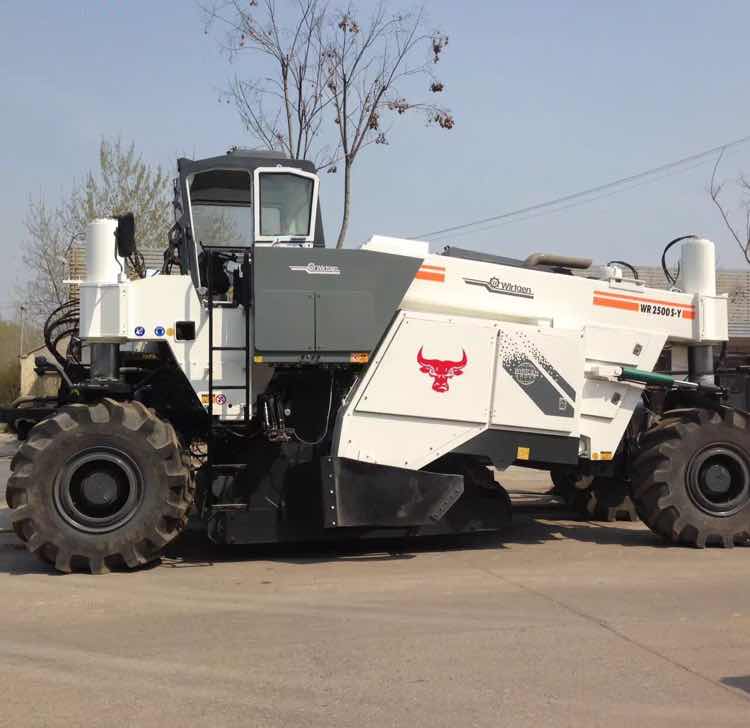

冷再生機升降機構包括機架，機架對稱地設置在連桿、升降臂和轉子的兩側，連桿與升降臂的端部連接，升降臂的前端鉸接在車輛上，機架可繞鉸接點轉動，提升臂與轉子連接，提升臂上設有旋轉系統，驅動轉子運行。
The lifting mechanism of the cold regeneration machine includes a frame, which is symmetrically arranged on both sides of the connecting rod, the lifting arm and the rotor, the connecting rod is connected with the end of the lifting arm, the front end of the lifting arm is hinged on the vehicle, the frame can rotate around the hinge point, the lifting arm is connected with the rotor, and the lifting arm is equipped with a rotation system to drive the rotor.
該機構有效降低了轉子切削反作用力，延長了氣缸的使用壽命，增加了工作深度的自動控制方式，操作更加方便，保證了工作深度的精度。
The mechanism effectively reduces the rotor cutting reaction force, extends the service life of the cylinder, increases the automatic control mode of the working depth, makes the operation more convenient, and ensures the accuracy of the working depth.
冷再生機升降機構包括機架，機架兩側對稱設置有連桿、升降臂和轉子，連桿連接在提升臂的端部，前提升臂鉸接在車架上，并可繞鉸接點轉動。
The lifting mechanism of the cold regeneration machine includes a frame. Connecting rod, lifting arm and rotor are symmetrically arranged on both sides of the frame. The connecting rod is connected to the end of the lifting arm, and the lifting arm is hinged on the frame and can rotate around the hinge point.
提升梁的端部與轉子相連，提升臂具有旋轉系統，驅動轉子運行，自動控制方法包括以下步驟：位移傳感器反饋模塊將工作深度的模擬信號傳輸給控制器，控制器根據設定值，通過PID調節設定工作深度并檢測工作深度，輸出PWM信號，由比例放大模塊控制轉換成標準電流信號并傳遞給控制油缸的電液比例閥，控制油缸的膨脹，控制系統對工作深度進行控制。
The end of the lifting beam is connected with the rotor, and the lifting arm has a rotating system to drive the rotor. The automatic control method includes the following steps: the displacement sensor feedback module transmits the analog signal of the working depth to the controller, and the controller sets the working depth through PID adjustment according to the set value, detects the working depth, and outputs the PWM signal, It is controlled by the proportional amplification module, converted into standard current signal and transmitted to the electro-hydraulic proportional valve of the control cylinder to control the expansion of the cylinder, and the control system controls the working depth.
